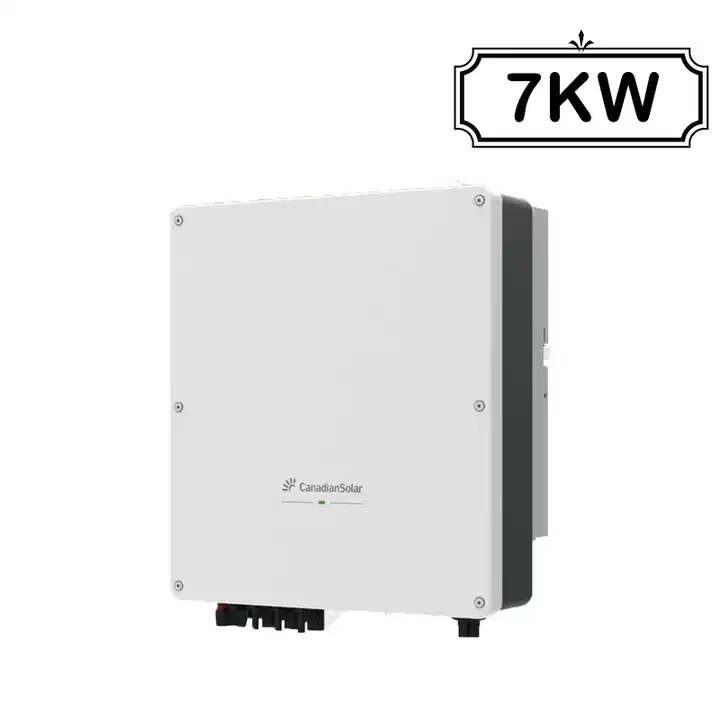

Canadian solar inverter 7-9KW on-grid energy inverters 7000W 9000W for on grid solar panel system home

Essential details

SYSTEM TECHNICAL DATA
MODEL NAME	CSI-7K-S22003-E	CSI-9KS22003-E
DC INPUT
Max.DC Input Voltage (V)	600
Start-up DC Input Voltage (V)	110
MPPT Operating Voltage Range (V)	100-500
Rated Input Voltage (V)	360
Max.Input Current (A)	15/30
Max.Short-Circuit Current(A)	18.8/37.6
Number of MPP Trackers	2
Number of DC Inputs	1/2
AC OUTPUT
Rated Output Power (W)	7000	9000
Max.Output Power (W)	7000	9000
AC Grid Connection Type	L/N/PE
AC Nominal Voltage And Range (V)	220/230/240(180-280)
AC Nominal Frequency And Range (Hz)	50/60(±5)
Max.Output Current (A)	31.8	40.9
Displacement Power Factor	0.8 leading to 0.8 lagging
Total Harmonic Distortion (THDi)	＜3%
EFFICIENCY
Max.Efficiency	98.1 %
European Efficiency	97.5 %
GENERAL PARAMETERS
Dimensions (WHD, mm)	399 x446 x192
Net Weight (kg)	19.5
Installation Method	Wall - mounted
DC Connection Type	MC4,T6
AC Connection Type	Connector
Communication	RS485 /WiFi
Display	LED & APP
Cooling	Natural Convection
Protection Degree	IP65
