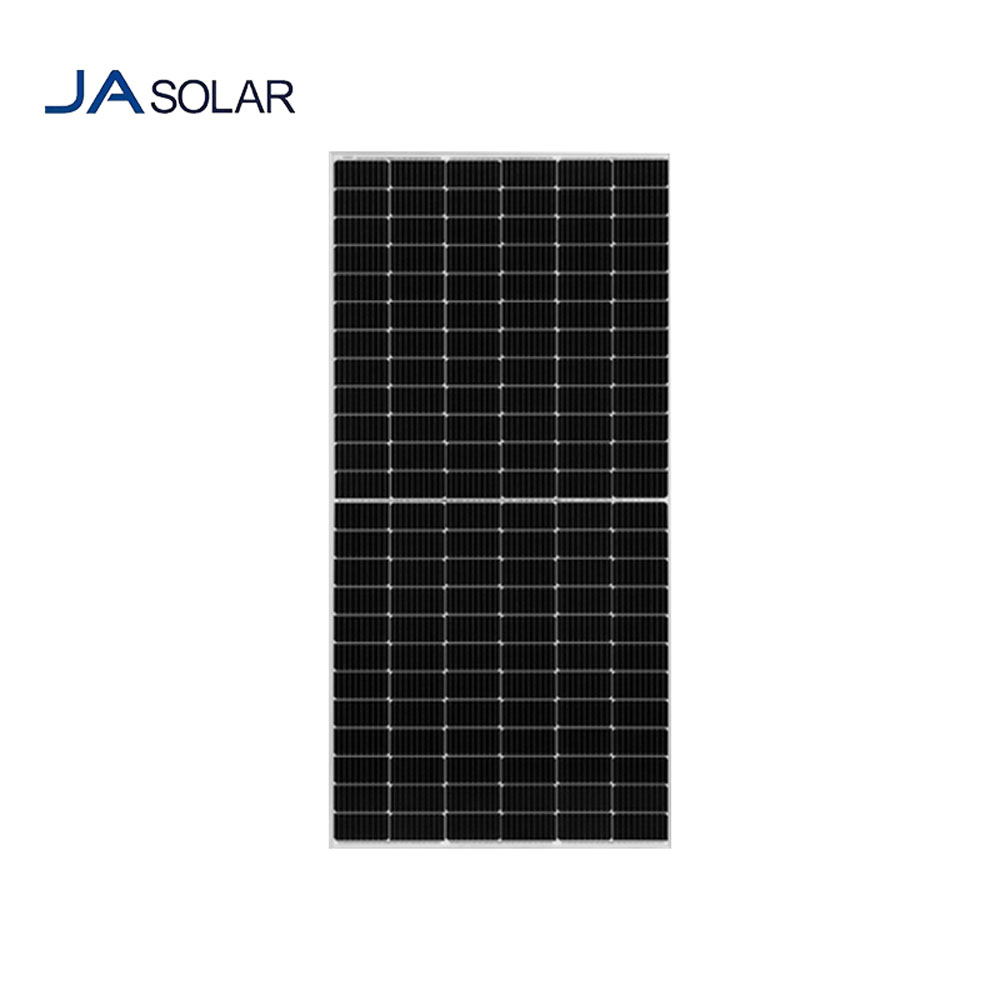

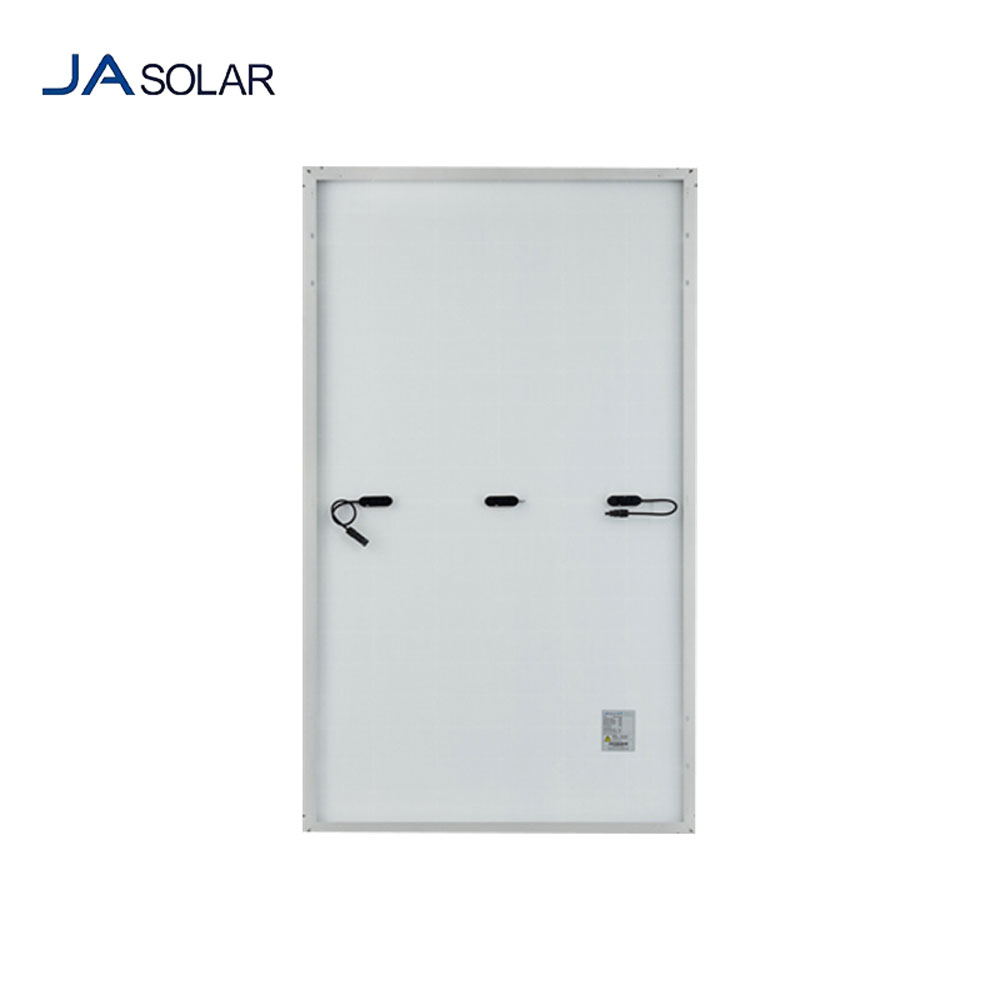

JA 530-555w Solar Panel
| Panel Efficiency: | 21.7% | ||||
|---|---|---|---|---|---|
| component size: | 2278 *1134*35mm | ||||
| texture: | monocrystalline silicon | ||||
| glass: | Single glass, 3.2 mm toughened glass | ||||
| component weight: | 27.5kg | ||||

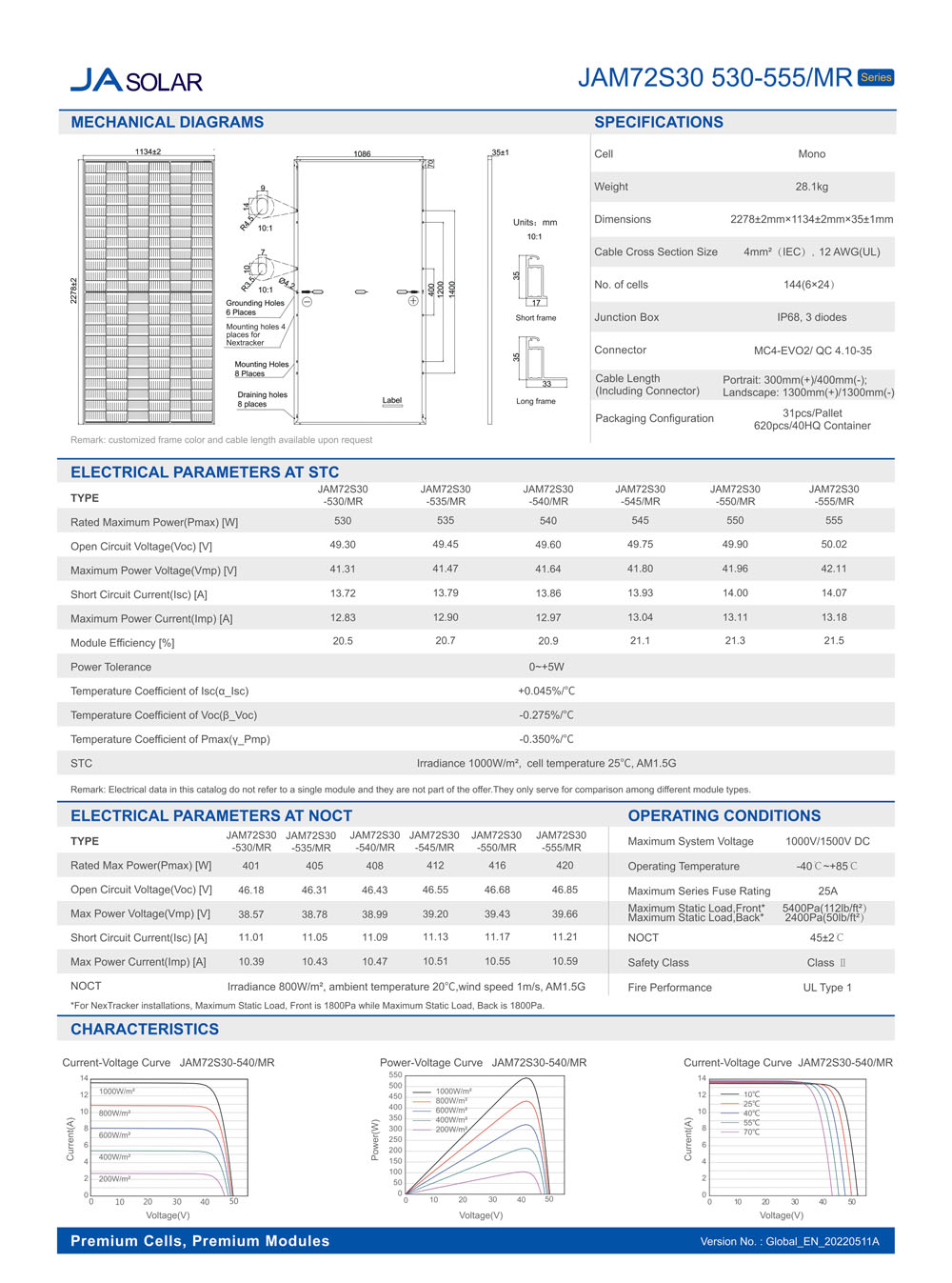

| MECHANICAL SPECIFICATION |
|---|
| Module Dimensions | 2278×1134×35mm |
| Weight | 28.1KG |
| Cell | 144（6×24）monocrystalline cells |
| Junction Box | IP68 |
| Cable | 4mm² |
| Nominal Max. Power （Pmax） | 530W | 535W | 540W | 545W | 550W | 555W |
|---|---|---|---|---|---|---|
| Opt. Operating Voltage （Vmp） | 41.31V | 41.47V | 41.64V | 41.80V | 41.96V | 42.11V |
| Opt. Operating Current （Imp） | 12.83A | 12.90A | 12.97A | 13.04A | 13.11A | 13.18A |
| Open Circuit Voltage （Voc） | 49.30V | 49.45V | 49.60V | 49.75V | 49.90V | 50.02V |
| Short Circuit Current （Isc） | 13.72A | 13.79A | 13.86A | 13.93A | 14.00A | 14.07A |
| Module Efficiency | 20.5% | 20.7% | 20.9% | 21.1% | 21.3% | 21.5% |
