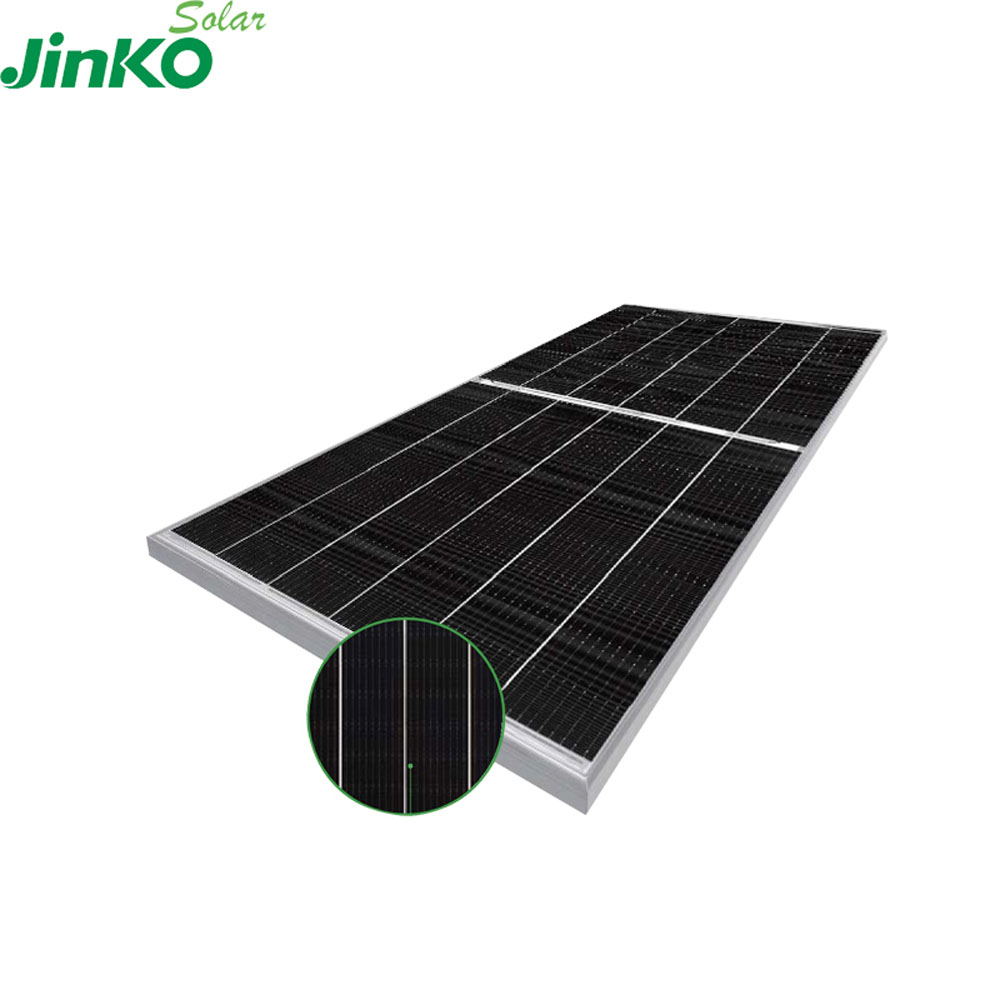

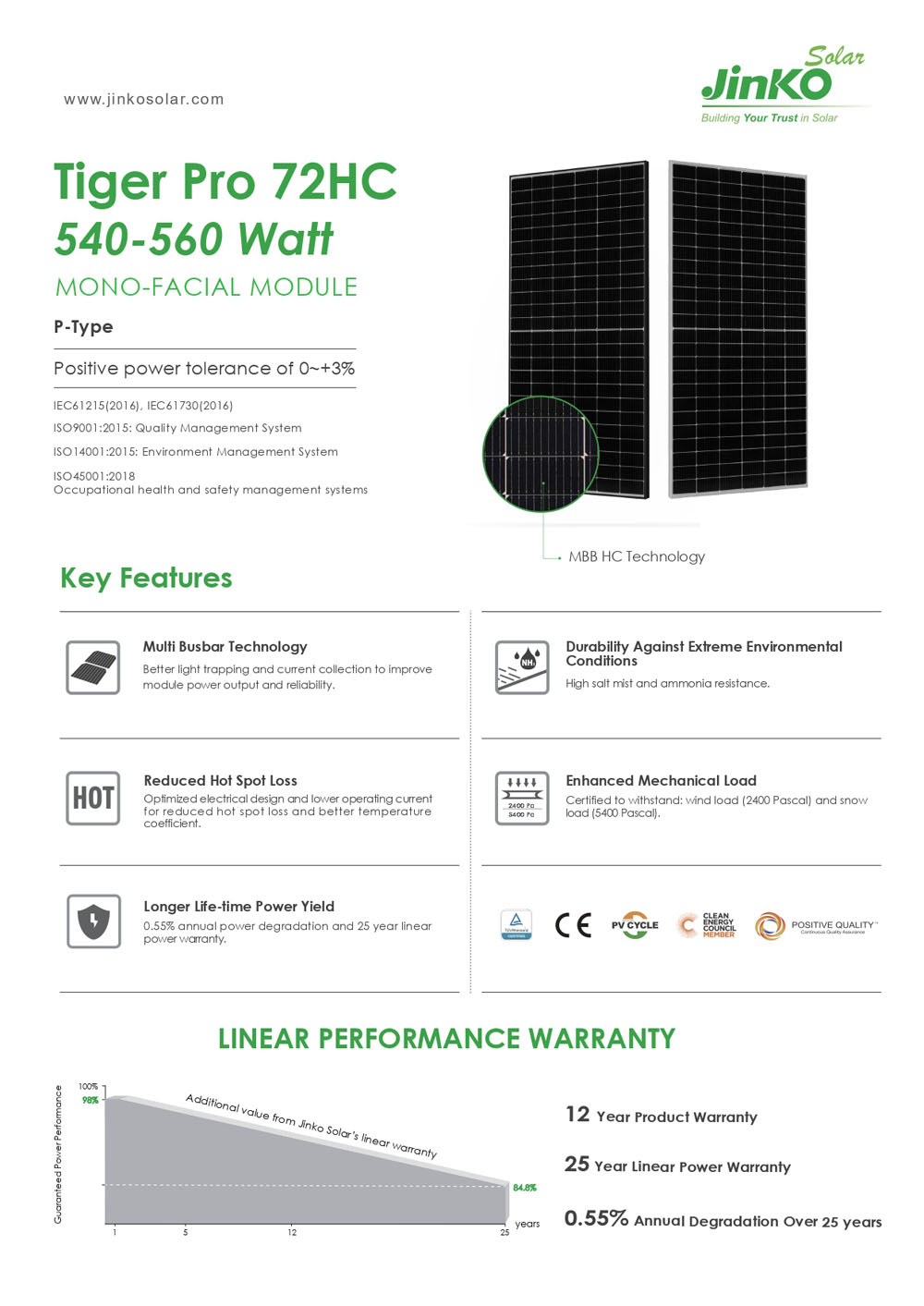

JinKo P-540-560w Solar Panel
| Panel Efficiency: | 21.7% | ||||
|---|---|---|---|---|---|
| component size: | 2278 *1134*35mm | ||||
| texture: | monocrystalline silicon | ||||
| glass: | Single glass, 3.2 mm toughened glass | ||||
| component weight: | 27.5kg | ||||

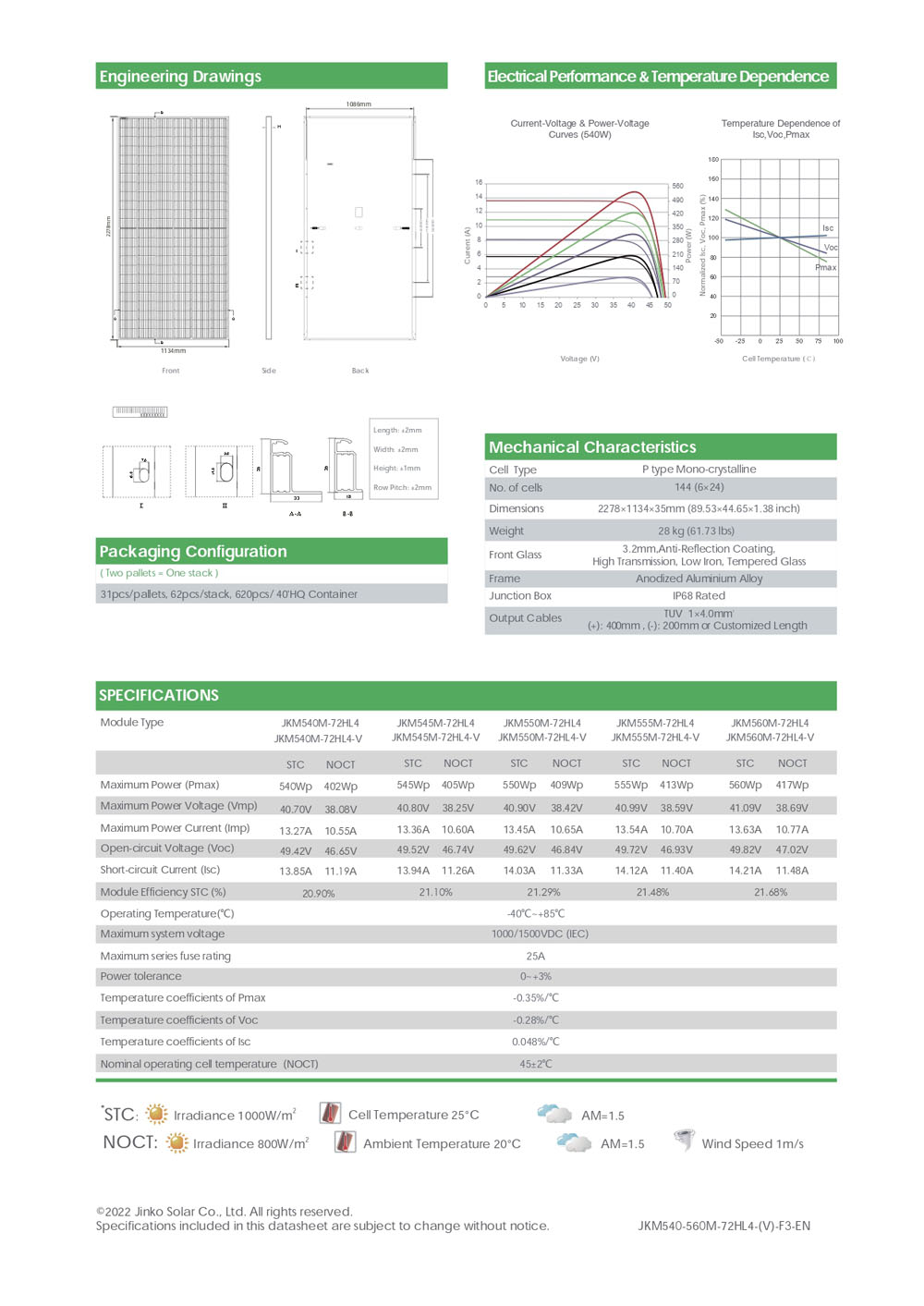

| MECHANICAL SPECIFICATION |
|---|
| Module Dimensions | 2278×1134×35mm |
| Weight | 28KG |
| Cell | 144（6×24）monocrystalline cells |
| Junction Box | IP68 |
| Cable | 4mm² |
| Nominal Max. Power （Pmax） | 540W | 545W | 550W | 555W | 560W |
|---|---|---|---|---|---|
| Opt. Operating Voltage （Vmp） | 40.70V | 40.80V | 40.90V | 40.99V | 41.09V |
| Opt. Operating Current （Imp） | 13.27A | 13.36A | 13.45A | 13.54A | 13.63A |
| Open Circuit Voltage （Voc） | 49.42V | 49.52V | 49.62V | 49.72V | 49.82V |
| Short Circuit Current （Isc） | 13.85A | 13.94A | 14.03A | 14.12A | 14.21A |
| Module Efficiency | 20.90% | 21.10% | 21.29% | 21.48% | 21.68% |
