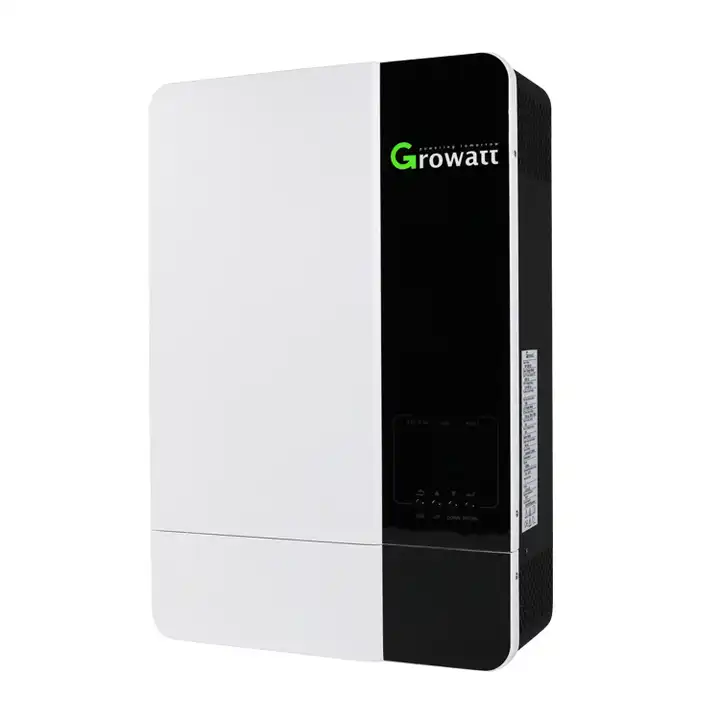

Off Grid 5kw Growatt SPF 5000ES Inverter price low frequency high quality inverter

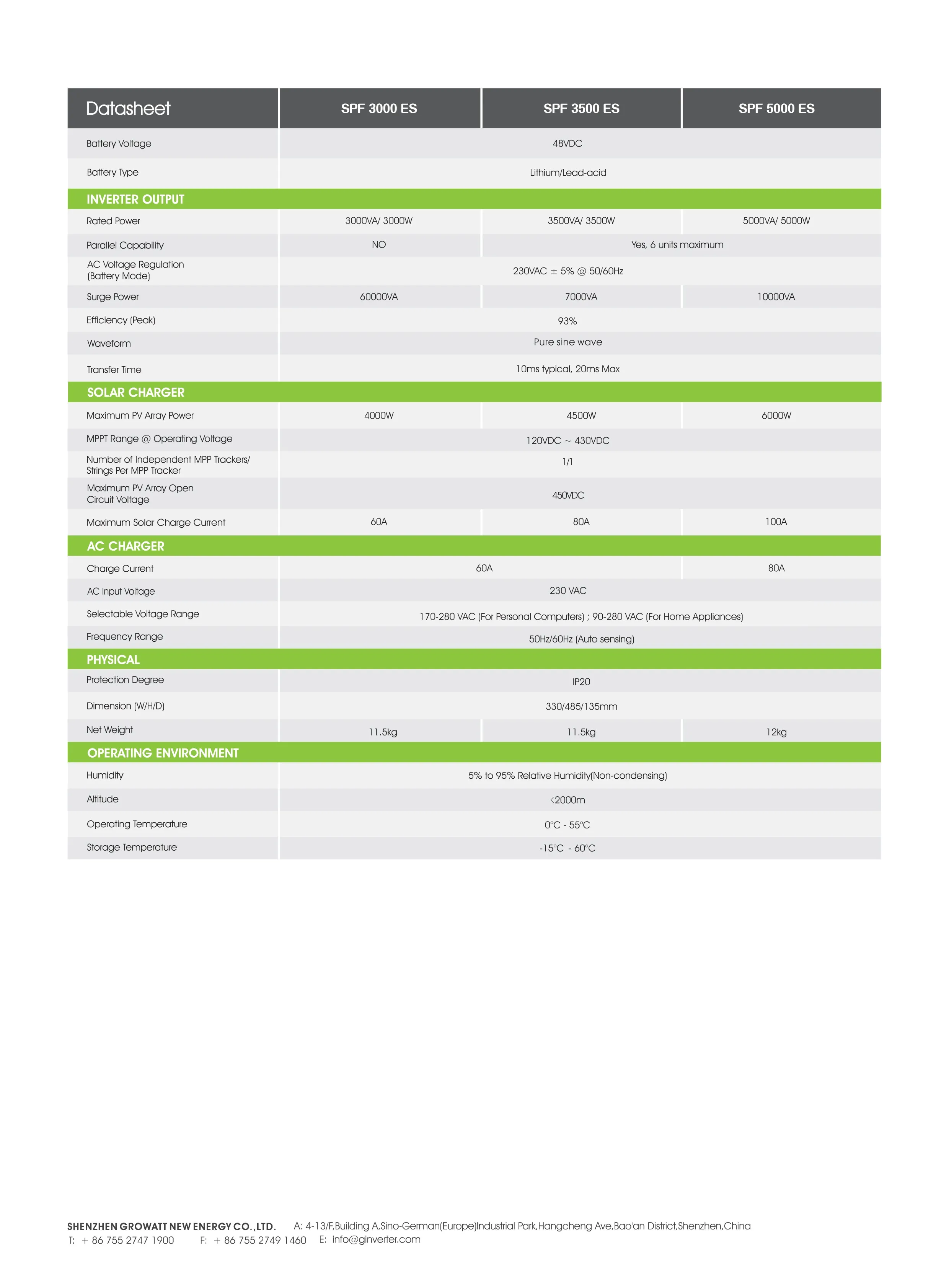

Datasheet	SPF 3000 ES	SPF 3500 ES	SPF 5000 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3000VA/3000W	3500VA/3500W	5000VA/5000W
Parallel Capability	NO	Yes,6 units maximum
AC Voltage Regulation(Battery Mode)	230VAC±5%@50/60HZ
Surge Power	6000VA	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical,20ms Max
SOLAR CHARGER
Maximum PV Array Power	4000W	4500W	6000W
MPPT Range @ Operating Voltag	120VDC-430VDC
Number of Independent MPP Trackers/Strings Per MPP Tracker	1/1
Maximum PV Array OpenCircuit Voltage	450VDC
Maximum Solar Charge Current	60A	80A	100A
AC CHARGER
Charge Current	60A		80A
AC Input Voltage	230VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	lP20
Dimension (W/H/D)	330/485/135mm
Net Weight	11.5KG	11.5KG	12KG
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C-55°C
Storage Temperature	-15°C-60°C
